KURARAY PLASTIC HOSE

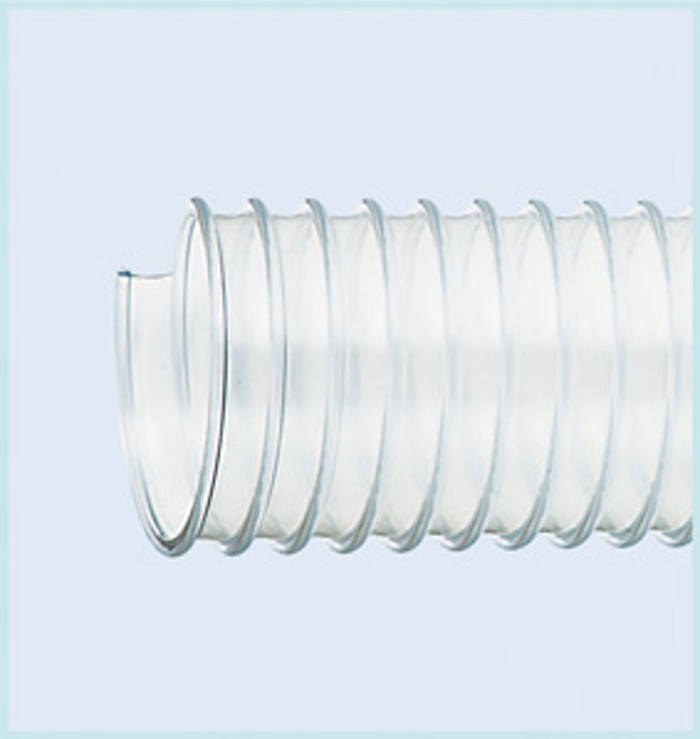

MULTINAⓇ
 |
|
FEATURE
- PVC DUCT HOSE WITH ANTISTATIC FORMULATION.
- EXCELLENT ANTISTATIC EFFECT WITH VOLUME RESISTIVITY 10 8Ω-CM BY SPECIAL FORMULATION.
- EASY TO CHECK THE CONVEYANCE BECAUSE OF THE TRANSPARENT BODY.
APPLICATIONS
- FOR EXHAUST FOR STATIC ELECTRICITY.
- FOR DUCT COLLECTION OF WOODWORKING MACHINERY, BASE MACHINE, SPINNING MACHINE,ABRASIVE MACHINE.
- TO CONVEY POWDER, GRANULE.

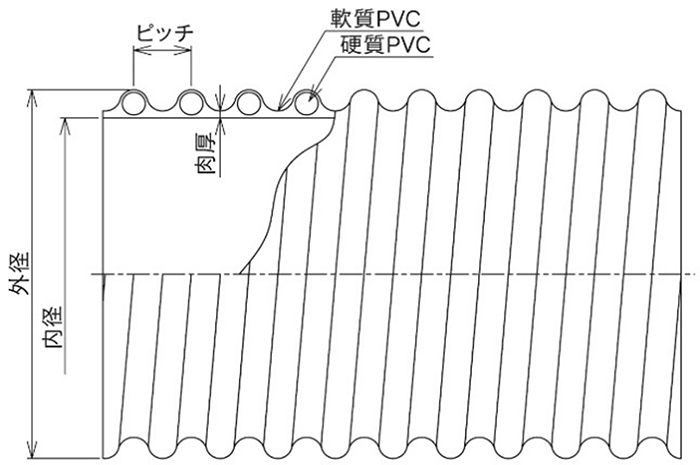

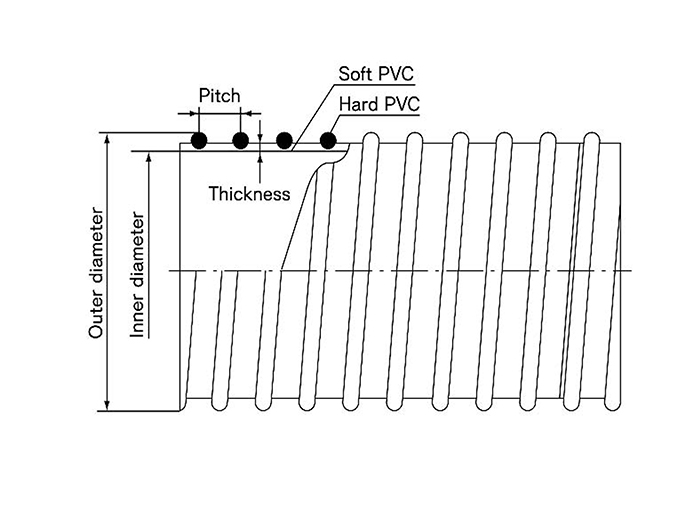

Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25.4 | 32.0 | 0.7 | 7.3 | 160 | 0.08 | -0.07 | 25 | 50 |
| 32 | 31.8 | 38.0 | 0.7 | 8.6 | 210 | 0.07 | -0.07 | 30 | 50 |
| 38 | 38.0 | 45.4 | 0.7 | 9.3 | 250 | 0.06 | -0.06 | 40 | 50 |
| 50 | 50.8 | 57.9 | 0.8 | 11.2 | 330 | 0.05 | -0.04 | 50 | 50 |
| 65 | 63.5 | 71.2 | 0.8 | 12.0 | 480 | 0.04 | -0.04 | 70 | 50 |
| 75 | 76.2 | 84.6 | 0.8 | 15.0 | 530 | 0.04 | -0.03 | 80 | 30 |
| 90 | 88.9 | 97.7 | 0.8 | 16.0 | 750 | 0.04 | -0.02 | 100 | 30 |
| 100 | 101.6 | 110.5 | 0.8 | 17.0 | 830 | 0.04 | -0.02 | 115 | 30 |
| 125 | 126.5 | 137.0 | 0.8 | 19.0 | 1,150 | 0.04 | -0.02 | 145 | 20 |
| 150 | 151.7 | 164.0 | 0.8 | 20.3 | 1,530 | 0.04 | -0.02 | 175 | 20 |
| 200 | 203.6 | 217.5 | 0.8 | 24.2 | 2,380 | 0.04 | -0.01 | 210 | 20 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

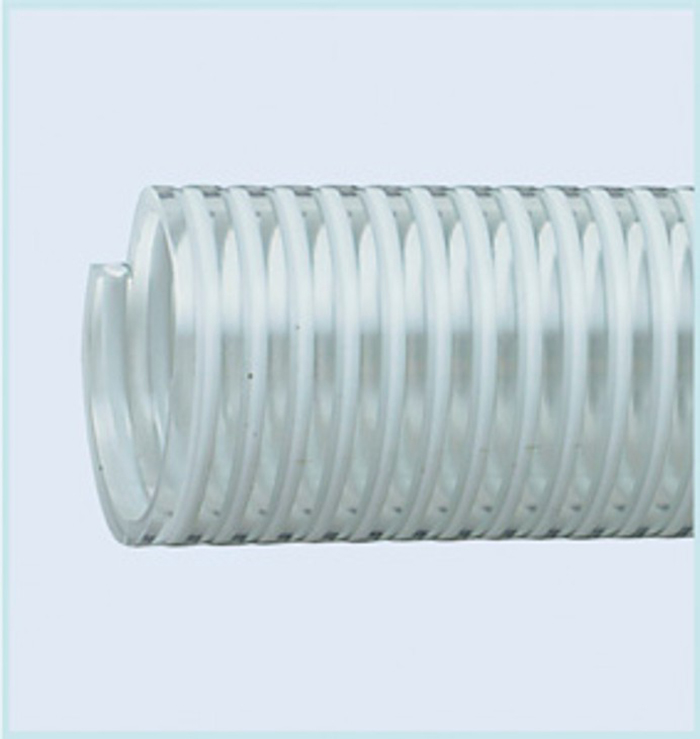

NEO PEARLⓇ FOR FOOD
 |
FEATURE
- THIS PRODUCT PASSED INSPECTION BASED ON JAPANESE STANDARD.
- PHTHALIC ACID BIS IS NOT USED FOR PLASTICIZER.
- EASY TO HANDLE WITH FLAT INSIDE / OUTSIDE SURFACES.
- DUST PROOF CAPS ARE ON BOTH SIDES OF THE HOSE. TO KEEP THE HOSE HYGIENICAL.
APPLICATIONS
- FOR BEER, REQUOR, BEVERAGE, SEAFOOD, NOODLE, SOY SOURSE, BEAN PAST,SOURCE, VINEGAR, SEASONING, VEGETABLE, FRUITS, SEAWEED, RICE FLOUR, STARCH, SUGAR, TEA ETC.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|
| 25 | 25.4 | 31.4 | 3.0 | 330 | 0.40 | -0.10 | 150 | 50 |
| 32 | 31.8 | 37.8 | 3.0 | 410 | 0.40 | -0.10 | 180 | 50 |
| 38 | 38.2 | 44.4 | 3.1 | 510 | 0.40 | -0.10 | 240 | 50 |
| 50 | 50.8 | 58.6 | 3.9 | 850 | 0.35 | -0.10 | 330 | 50 |
| 65 | 63.5 | 72.5 | 4.5 | 1,210 | 0.35 | -0.10 | 480 | 20,50 |
| 75 | 76.2 | 87.0 | 5.4 | 1,740 | 0.30 | -0.10 | 570 | 20,50 |
| 100 | 101.6 | 115.2 | 6.8 | 2,900 | 0.30 | -0.10 | 870 | 50 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

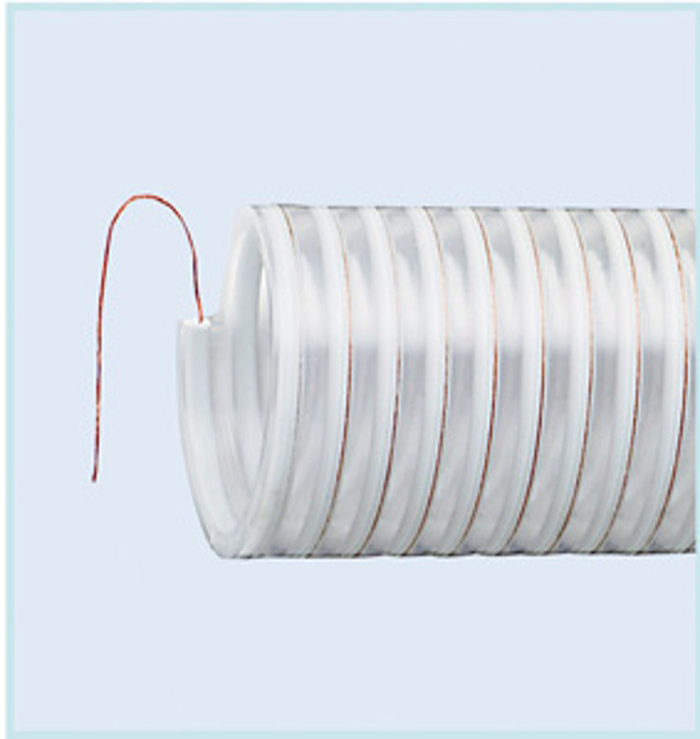

NEO PEARLⓇ WITH EARTH WIRE
 |
FEATURE
- EXCELLENT ANTISTATIC EFFECT WITH EARTH WIRE.
- EASY TO CHECK THE CONVEYANCE BECAUSE OF THE TRANSPARENT BODY.
APPLICATIONS
- FOR BOTH DELIVERY AND SUCTION.
- FOR RESIN PELLETS, VARIOUS POWDERS, AND FLUID TRANSPORT.
- FOR ANTISTATIC PIPING ETC.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|
| ◎25 | 25.4 | 31.4 | 3.0 | 330 | 0.40 | -0.10 | 150 | 20 |
| ◎32 | 31.8 | 37.8 | 3.0 | 410 | 0.40 | -0.10 | 180 | 20 |
| 38 | 38.2 | 44.4 | 3.1 | 510 | 0.40 | -0.10 | 240 | 20,50 |
| 50 | 50.8 | 58.6 | 3.9 | 850 | 0.35 | -0.10 | 330 | 20,50 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)
※2. ◎MARKED ITEMS ARE MADE TO ORDER.

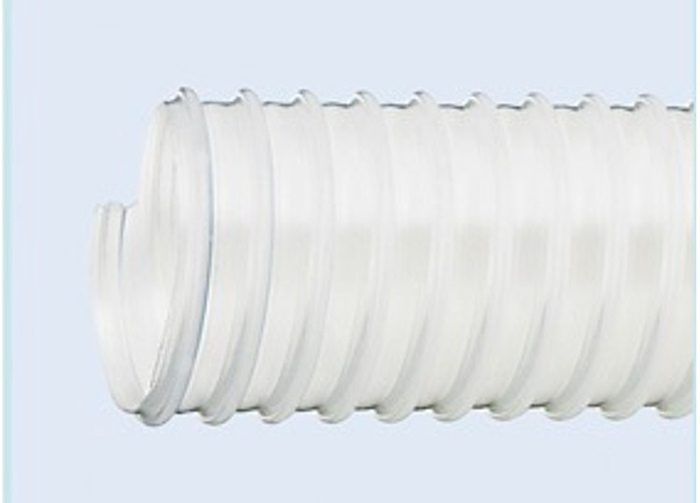

Cleanflex CF-A (Non – Vinyl chloride material)
 |
|
FEATURE
- SUPERIOR FLEXIBILITY WITH LIGHTWEIGHT.
- THIS PRODUCT PASSED INSPECTION BASED ON JAPANESE STANDARD.
- NO TOXIC GAS AND SUBSTANCES ARE GENERATED WHEN INCINERATING
- DUST PROOF CAPS ARE ON BOTH SIDES OF THE HOSE. TO KEEP THE HOSE HYGIENICAL.
APPLICATIONS
- FOR FOOD, AIR DUCT, BLOWER.
- AIR INTAKE AND EXHAUST FOR LOCAL EXHAUST VENTILATION.
- FOR OTHER GENERAL DUST COLLECTOR AND EXHAUST.
※NOT APPLICABLE FOR LIQUID AND FOOD WHICH CONTAINS OIL.
※FOR INDOOR USE ONLY.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|
| 38 | 38.2 | 46.5 | 11.0 | 210 | 0.05 | -0.06 | 60 | 20 |
| 50 | 50.8 | 60.2 | 12.5 | 300 | 0.05 | -0.05 | 70 | 20 |
| 65 | 63.5 | 74 | 14.0 | 370 | 0.04 | -0.04 | 80 | 20 |
| 75 | 76.7 | 87 | 15.0 | 520 | 0.04 | -0.03 | 90 | 20 |
| 100 | 101.6 | 112 | 18.0 | 720 | 0.04 | -0.02 | 120 | 20 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

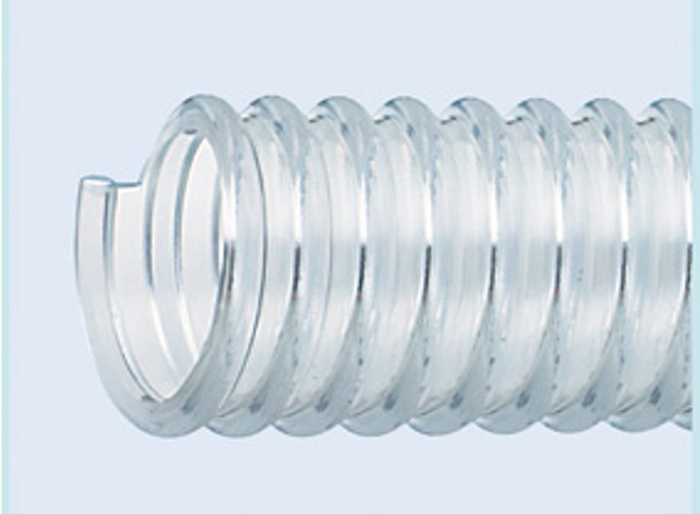

DS-3-TYPE Entirely Transparent
 |
|
FEATURE
- Excellent flexibility with smooth inner surface and bellows outer surface.
- It is transparent,and it is possible to check the fluid inside.
APPLICATIONS
- It can be used for both suction and delivery, and is especially suitable for suction.
- For water absorption and conveyance in industry, civil engineering, agriculture, etc.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25.4 | 33.0 | 1.9 | 7.5 | 300 | 0.20 | -0.10 | 110 | 50 |
| 32 | 31.8 | 40.0 | 1.9 | 8.4 | 400 | 0.20 | -0.10 | 120 | 50 |
| 38 | 38.2 | 47.5 | 1.9 | 10.0 | 500 | 0.20 | -0.10 | 140 | 50 |
| 50 | 50.8 | 60.0 | 2.0 | 10.2 | 710 | 0.20 | -0.10 | 200 | 20,50 |
| 65 | 63.5 | 75.0 | 2.3 | 13.3 | 1,000 | 0.20 | -0.10 | 200 | 20,50 |
| 75 | 76.2 | 89.0 | 2.9 | 13.9 | 1,370 | 0.20 | -0.10 | 210 | 20,50 |
| 90 | 88.9 | 105.2 | 3.7 | 16.2 | 2,100 | 0.20 | -0.10 | 300 | 20 |
| 100 | 101.6 | 118.6 | 4.0 | 17.2 | 2,500 | 0.15 | -0.10 | 350 | 20 |
| 125 | 127.0 | 152.2 | 4.3 | 22.0 | 4,200 | 0.10 | -0.10 | 630 | 20 |
| 150 | 152.4 | 180.5 | 5.0 | 26.5 | 5,700 | 0.10 | -0.10 | 840 | 20 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

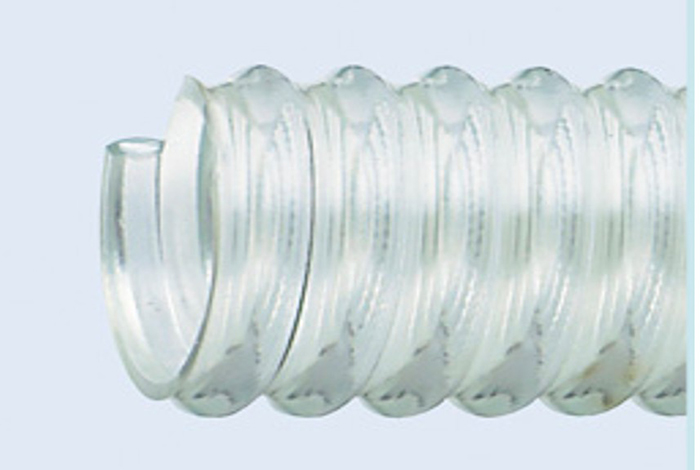

DS-3-TYPE Oil Queen
 |
|
FEATURE
- Special oil-resistant formulation provides excellent flexibility at low temperatures.
- Excellent flexibility with smooth inner surface and bellows outer surface.
- It is transparent,and it is possible to check the fluid inside.
APPLICATIONS
- It can be used for both suction and delivery, and is especially suitable for suction.
- For transporting oil such as heavy oil, light oil, kerosene, etc.
※Crude oil and gasoline cannot be used
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 19 | 19.4 | 26.0 | 1.5 | 7.0 | 210 | 0.30 | -0.10 | 75 | 50 |
| 25 | 25.4 | 33.8 | 1.8 | 8.0 | 325 | 0.30 | -0.10 | 105 | 50 |
| 32 | 31.8 | 40.0 | 1.8 | 8.2 | 400 | 0.30 | -0.10 | 120 | 50 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)
※2.Depending on the type of oil, the hose may become cloudy.
Neo Homer 6
|
|
FEATURE
- It is fiber reinforced, so it has excellent pressure resistance.
- It is lightweight, flexible and easy to work with.
APPLICATIONS
- For supplying and absorbing water.
- For transporting powders and granular materials.
- Cleaning ship decks and for suctioning and pressure feeding fishes.
- For suction hoses of sludge suction vehicles.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 25.4 | 34.2 | 1.5 | 7.5 | 380 | 0.50 | -0.10 | 90 | 50 |
| 32 | 31.8 | 41.6 | 1.7 | 8.5 | 460 | 0.50 | -0.10 | 120 | 50 |
| 38 | 38.1 | 48.7 | 1.9 | 10.0 | 580 | 0.50 | -0.10 | 150 | 50 |
| 50 | 50.8 | 63.4 | 2.4 | 12.0 | 860 | 0.50 | -0.10 | 210 | 50 |
| 65 | 63.5 | 80.0 | 2.8 | 14.0 | 1,400 | 0.50 | -0.10 | 210 | 50 |
| 75 | 75.5 | 93.3 | 3.1 | 15.0 | 1,800 | 0.50 | -0.10 | 360 | 20,50 |
| 100 | 101.1 | 120.0 | 3.7 | 16.5 | 2,450 | 0.50 | -0.10 | 550 | 20,50 |
| 125 | 126.0 | 152.0 | 4.8 | 22.0 | 4,100 | 0.50 | -0.10 | 650 | 20 |
| 150 | 152.4 | 183.5 | 5.3 | 22.0 | 5,800 | 0.50 | -0.10 | 800 | 20 |
| 200 | 203.2 | 238.0 | 5.8 | 28.0 | 8,600 | 0.50 | -0.10 | 1,500 | 20 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

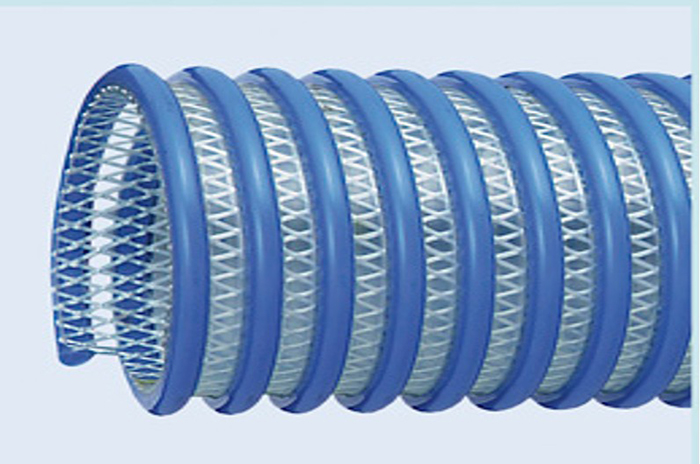

Neo Homer 6 Oil Resistant Blue
|
FEATURE
- Its special formulation gives it excellent oil resistance and flexibility at low temperatures.
- It is fiber reinforced, so it has excellent pressure resistance.
APPLICATIONS
- For supplying and absorbing water.
- For transporting heavy oil, light oil, and kerosene.
- Cleaning ship decks and for suctioning and pressure feeding fishes.
- For suction hoses of sludge suction vehicles.
※Crude oil and gasoline cannot be used
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 50.8 | 64.5 | 2.8 | 9.0 | 950 | 0.50 | -0.10 | 210 | 50 |
| 65 | 63.5 | 80.0 | 2.8 | 14.0 | 1,400 | 0.50 | -0.10 | 270 | 20,50 |
| 75 | 75.5 | 93.3 | 3.0 | 15.0 | 1,800 | 0.50 | -0.10 | 360 | 20,50 |
| 100 | 101.1 | 120.0 | 3.7 | 16.5 | 2,450 | 0.50 | -0.10 | 550 | 20,50 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)
Banner BL-R
|
FEATURE
- The inside of the hose is made of abrasion-resistant rubber, making it highly durable.
- The structure is resistant to external pressure and changes shape little.
APPLICATIONS
- For pumping and suctioning muddy water, gravel, and concrete powder in civil engineering works.
- For other applications requiring wear resistance and pressure resistance.
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Pitch 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 50.8 | 69.5 | 5.8 | 10.0 | 1,760 | 1.00 | -0.10 | 600 | 20,50 |
| 65 | 63.5 | 86.0 | 5.8 | 14.3 | 2,320 | 1.00 | -0.10 | 750 | 20,50 |
| 75 | 76.2 | 99.5 | 5.8 | 15.1 | 2,860 | 1.00 | -0.10 | 750 | 20,50 |
| 100 | 101.6 | 129.0 | 6.1 | 17.0 | 4,520 | 1.00 | -0.10 | 1,250 | 20,50 |
| 125 | 127.0 | 159.5 | 7.5 | 22.0 | 6,310 | 1.00 | -0.10 | 1,700 | 20 |
| 150 | 152.4 | 187.5 | 8.5 | 22.0 | 8,000 | 1.00 | -0.10 | 2,000 | 20 |
| 200 | 203.2 | 247.5 | 9.5 | 25.0 | 13,700 | 1.00 | -0.10 | 2,250 | 10,20 |
| 250 | 256.0 | 303.0 | 10.5 | 25.5 | 19,200 | 0.70 | -0.10 | 4,750 | 5 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)

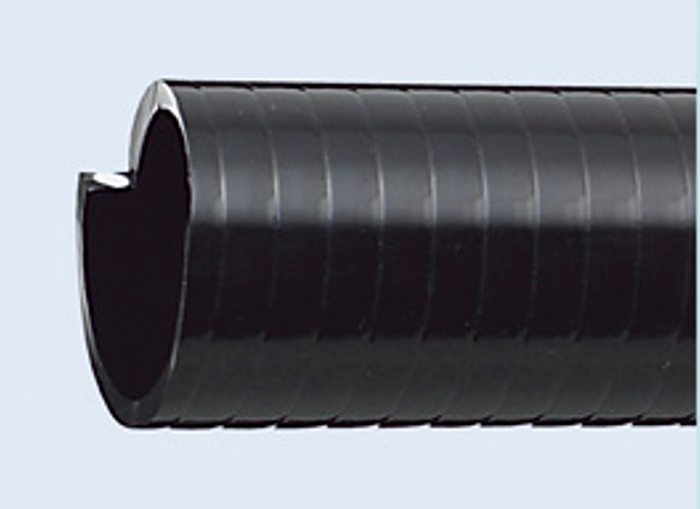

DS-2 Oil Resistant
 |
FEATURE
- Its special formulation gives it excellent oil resistance and flexibility at low temperatures.
- The inner and outer surfaces of the hose are smooth, making it easy to handle.
APPLICATIONS
- For supplying and absorbing water.
- For transporting heavy oil, light oil, and kerosene.
※Crude oil and gasoline cannot be used
Standard specifications and performances
| Nominal size |
Inner diameter 【mm】 |
Outer diameter 【mm】 |
Thickness 【mm】 |
Standard weight 【g/m】 |
Allowable pressure at room temperature 【MPa】 |
Negative proof pressure at room temperature 【MPa】 |
Allowable bending radius at room temperature 【mm】 |
Standard length 【m】 |
|---|---|---|---|---|---|---|---|---|
| 25 | 25.4 | 31.8 | 3.2 | 360 | 0.40 | -0.10 | 120 | 50 |
| 32 | 31.8 | 39.2 | 3.6 | 500 | 0.40 | -0.10 | 165 | 50 |
| 38 | 38.2 | 46.6 | 4.2 | 730 | 0.40 | -0.10 | 225 | 50 |
| 50 | 50.8 | 60.8 | 5.0 | 1,140 | 0.40 | -0.10 | 420 | 50 |
| 65 | 63.5 | 75.9 | 6.2 | 1,750 | 0.40 | -0.10 | 570 | 20,50 |
| 75 | 76.2 | 91.4 | 7.6 | 2,530 | 0.40 | -0.10 | 660 | 20,50 |
※1. The range of working temperature is -10℃ to +50℃ as s guideline.(40℃ or below for continuous use)
